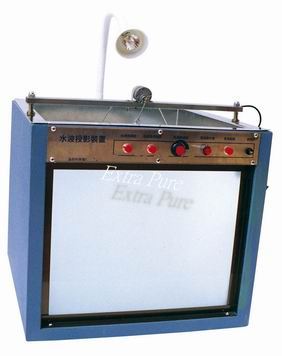

水波投影裝置 (影幕投影式)

特殊設計，水槽上置強力光源投射，由下反射投影螢幕上，
像電視一樣適合多位學生同時觀察。
　
目的：
觀察水波各種波形實驗，波的反射、
折射、繞射、波的擴展及水波、音波、光波等現象。
　
規格：不繡鋼水槽尺寸 450×450×60mm

影幕尺寸：350×450mm

機台尺寸：520×520×460mm
　
電源：110V  12v/50w鹵素燈
　
裝配：
電源開關及指示燈，馬達起波器，調速器及開關，光源燈開關
保險絲，排水出口開關
　
配件：
小馬達(圓形起波器)，圓形木棒，木塊，厚玻璃板，長條海棉，
塑膠軟管等一組

Ideal laboratory apparatus for the study of wave motion in 2 dimensions. Students obtain evidence that waves undergo reflection, refraction, dispersion, and diffraction.

The tank is constructed of a rugged stainless frame with a glass plate for maximum optical clarity. It is equipped with 520mm× 520mm× 460mm steel box with a 350mm× 450mm projection screen, contains a 12V/50W built-in light source, and rippler bar.  a variable speed control operates the DC rippler motor.

The high-intensity light source provides excellent illumination, and the rippler motor provides ideal waves for both low- and high-speed operation. Unit also includes a woodblock and stick, a plastic tube and a sponge.
