數位式溫度計

測量範圍： -50℃~1300℃/ -50℉~1999℉
　

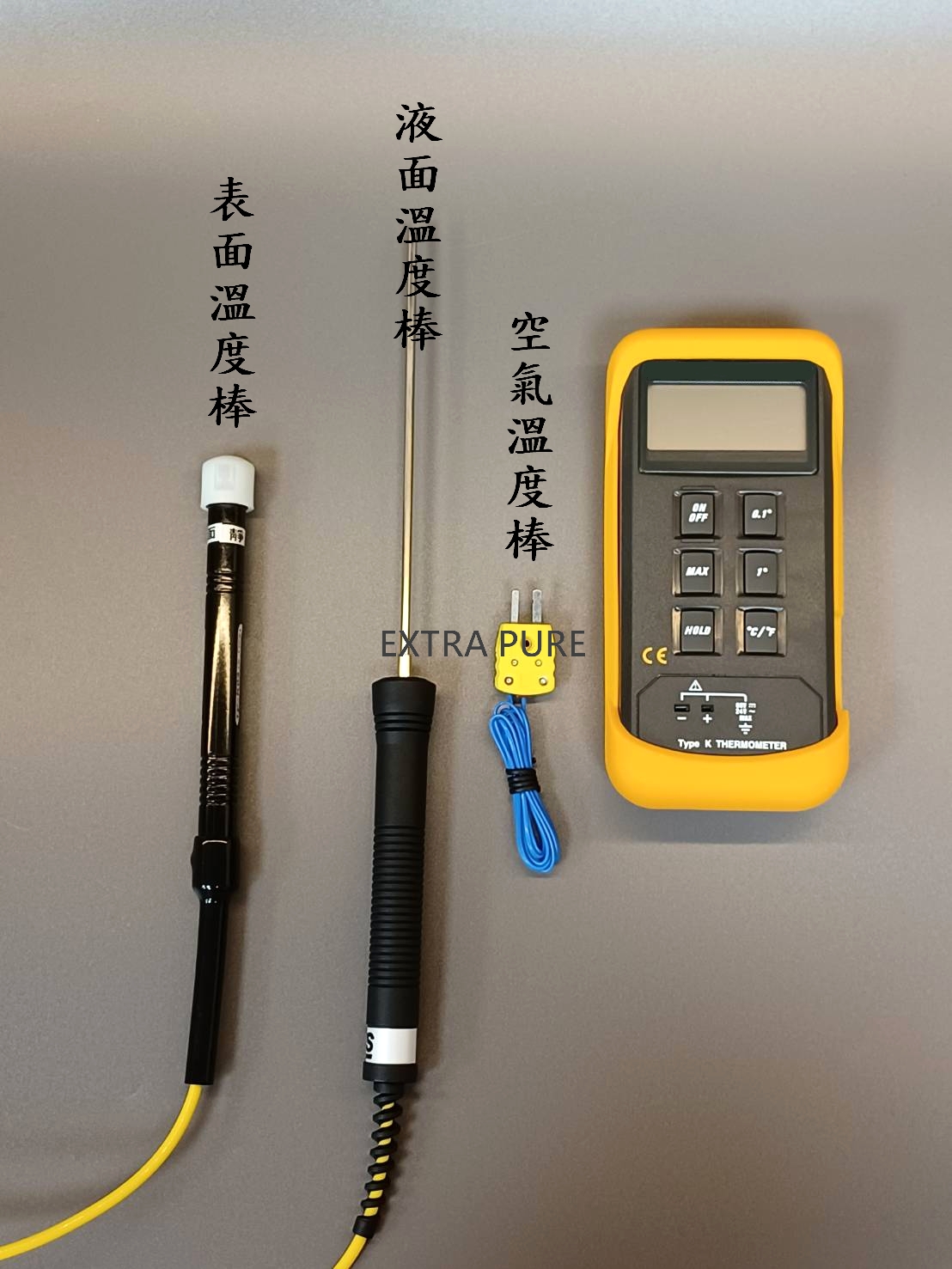

測試棒：空氣溫度棒， 液面溫度棒，表面溫度棒各1支
　
電錶測器尺寸：135×72×31mm
　
電源：電池9V1個

Type "K" Thermocouple Input
Room Temperature Compensated
Switchable Resolution 0.1˚/1˚ (1310)
T1 & T2 dual points display (1320)
With ℃ & ℉switching
T1 - T2 differential measurement (1320)
Data Hold Function
Flip-up stand
Measuring Range : -50℃ ~ 1,300℃
                                -50℉ ~ 1,999℉
Sensor : K Type thermocouple
Input : Single Channel / Dual Channel
Resolution : -50℃ ~ +199.9℃...0.1℃
                     -50℉ ~ +199.9℉...0.1℉
Accuracy :
-50℃ ~ 199.9℃...0.3% rdg + 1℃
-50℉ ~ 199.9℉...0.2% rdg + 2℉
-50℃ ~ 1000℃...0.3% rdg + 1℃
-50℉ ~ 1,999℉. ..0.3% rdg + 2℉
1000℃ ~ 1,300℃..0.5% rdg + 1℃(apply to mainframe only at 23℃±5℃)
Temperature Coefficient :
     Less than 0.1 time the applicable accuracy specification per ℃(℉)
Input Protection :
     60V DC or 24 Vrms AC maximum input voltage on any combination of input Connector
Sampling Rate : 2.5 times/sec
Operating Condition : 0℃ ~ 50℃(32℉~122℉)
                                    0 ~ 90% R.H.
Power Source : One 9V battery(006P or IEC6F22)
Size : 135mm(L) x 72mm(W) x 31mm(H)
Weight : 206g
Accessories : Battery, Instruction Manual
